PRODUCT DETAILS

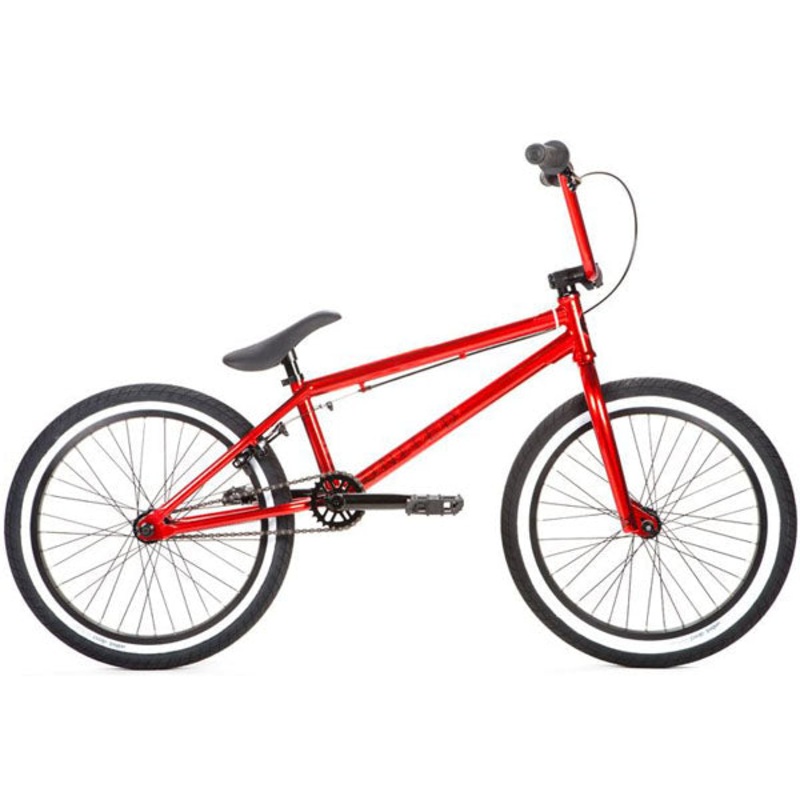

The United Recruit 2014 BMX bike features a 20″ top tube frame with sealed cassette rear hub, 25/9 gearing, sealed MID bottom bracket, 170mm 3-pc tubular cranks, United Direct tires and weighs under 25lbs.

FRAME SPECS:
Top tube Length: 20″
Chainstay Length: 13.25″
Headtube Angle: 75
Seattube Angle: 71

Recommended Rider Height: 4′ 10″ – 5′ 6″

SPECS:
FRAME:1020 hi ten steel, welded 990 brake mounts, integrated head tube, mid bb, embossed logo top tube gusset, 14mm dropouts
FORK: Cnc steerer tube, integrated bearing race, tapered 1020 hi ten steel legs
HANDLEBAR: 8.25 in rise, 28 in wide, 11 back sweep, 1.5 up sweep, 1020 hi ten steel
GRIPS: United, United nylon ends
HEADSET: United sealed bearing integrated
STEM: United 50mm reach front load stem with United logos and forged detailing
LEVER: Alloy
BRAKE: 990
CRANKS: 3pc 170mm, tubular cromo, 19mm 8 spline spindle
BB: United sealed bearing mid, 19mm
SPROCKET: United 25t, steel
PEDALS: Nylon plastic
CHAIN: Taya 410, black
REAR RIM: Alloy 36h, single wall
FRONT RIM: Alloy 36h, single wall
REAR HUB: 36h sealed alloy cassette, 14mm axle, sealed bearing 9t driver, 4 pawl, ultra load mech
FRONT HUB: 36h alloy, 10mm axle
REAR TIRE: United Direct 20 x 2.1
FRONT TIRE: United Direct 20 x 2.3
SEAT: United Recruit combo padded
SEAT POST: Integrated with seat
SEAT CLAMP: Alloy
PEGS: n/a

WEIGHT: 24.9lbs/11.29kg

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
