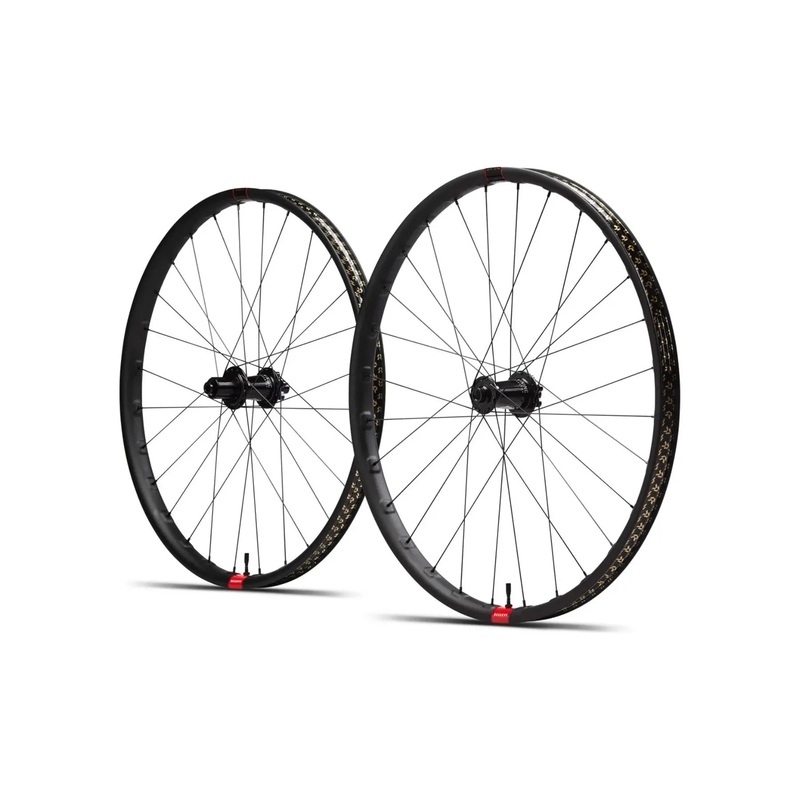

Building the strongest, most reliable, and best-handling wheelset to meet the needs of todays trail rider was the goal when Santa Cruz developed the Reserve 30|HD. The Reserve 30|HD is specially designed to stand up to abuse, featuring a 30-millimeter width for use with 2.5-inch tires and a redesigned inner rim bed that takes the hassle out of seating new tires. Proven in the lab, ride tested in some of the toughest terrains on the planet, the 30|HD takes you there faster with a greater sense of confidence.

FEATURESSPECS

FEATURES:

• Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
• The 30|HDs redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allow the tire to easily push past the bead bump to seat tubeless tires.
• Asymmetrical rims, like those on the 30|HD, build stiffer, stronger, and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.
• Designed for Trail, All Mountain, and Enduro riding

SPECS:

• Wheel Size:27.5″
• Hubs: Industry Nine Hydra XD
• Wheel Type: Mountain
• Internal Width: 30mm
• Spoke Count: 28
• ERD: 559mm (27.5)
• Asymmetric Offset: 4mm
• Recommended Tire Width: 2.3-2.6in.
• Driver: MS
• Brake: 6-Bolt
• Depth: 20mm
• Endcap Options: Standard
• Hub Spacing: 110/148
