PRODUCT DETAILS

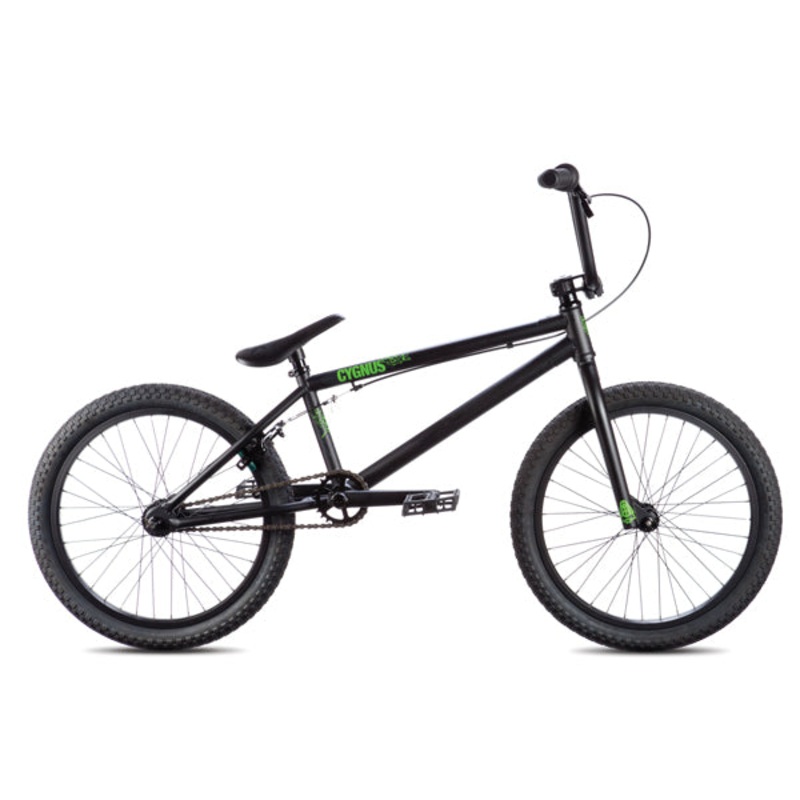

The DK Cygnus for 2013 features a 4130 CrMo main frame, 4130 CrMo fork and a sealed MID bottom bracket.

FRAME SPECS:
Toptube Length: 20.25″
Chainstay Length: 13.54
Headtube Angle: 74.5
Seattube Angle: 72

RECOMMENDED RIDER HEIGHT: 5′ 2″ – 5′ 6″

FRAME: 4130 Chromoly main frame
HEADTUBE: Integrated 1 1/8″
BB SHELL: MID BB shell
BRAKE MOUNTING: U-Brake
SEAT CLAMP: 1 1/8″
FORK: 1 1/8″ Fork w/ Chromoly steer tube and welded star nut
HANDLEBAR: 4130 chromoly 8″ Handlebars, 12 back sweep and 2 up sweep
STEM: Alloy Front Load
GRIPS: DK Tsuka
HEADSET: 1 1/8″ Sealed Integrated
REAR BRAKE: TEKTRO 907A Alloy U-Brake
BRAKE LEVER: Tektro 2-Finger cast alloy
CRANKS: 3 pc. tubular Crmo 175mm
BOTTOM BRACKET: Sealed MID with 8T spline spindle
SPROCKET: DK Steel 25t
PEDALS: DK Nylon/Fiber platform
CHAIN: KMC Z510
HUBS: 36H Alloy shell, 9T cassette, 14mm rear
RIMS: 36H Alloy
TIRES: Kenda K RAD Multisurface 20×2.125″ 75psi
FREEWHEEL: 9T Cassette
SEAT: 1-pc plastic seat post combo
SEAT POST: 1-pc seat/post
MISC: N/A

Weight: 25.18 lbs / 11.42 kg

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture’s warranty. Manufacture’s warranties differ for every brand. You can check the brand’s website for warranty information.
