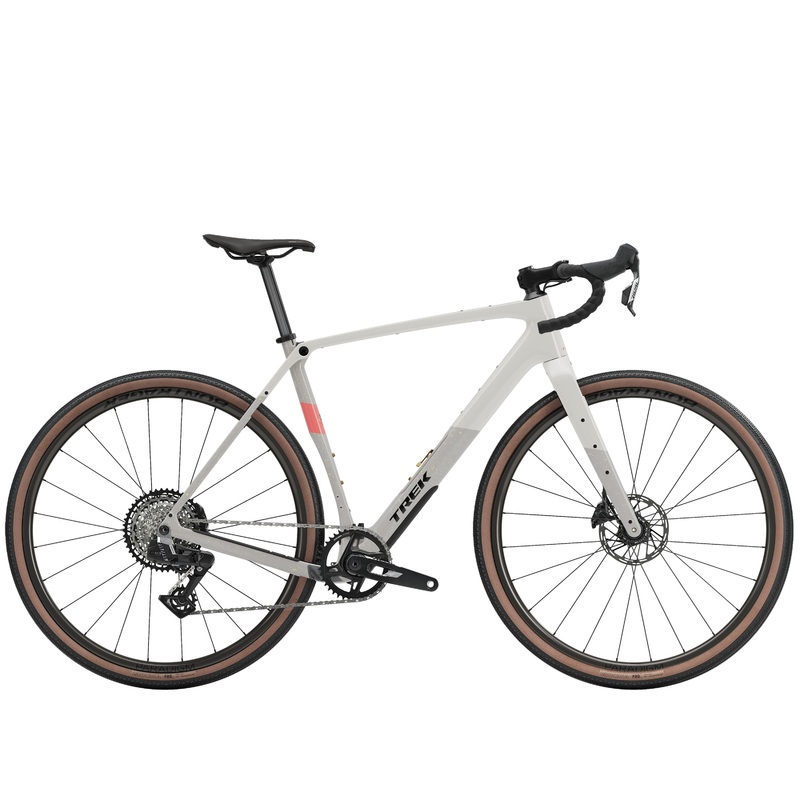

Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures. Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. Its ready to cut loose with a SRAM Rival AXS E1 wireless 13-speed groupset.
- Checkpoints Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
- Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer
- You get crisp and clean shifts from the upgraded SRAM Rival AXS E1 wireless electronic 13-speed drivetrain
- Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy gravel roads
- You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
IsoSpeed comfort tech
IsoSpeed comfort tech smooths potholes and fatiguing bumps in the road so you can ride stronger longer.
New Gravel Endurance geometry
A new confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position so you can stay comfortable on even your most epic adventures.
Big ol tire clearance
Roll over the rough stuff with room to fit gravel tires up to 50mm wide (as measured).
Bigger in-frame storage
More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so youre always ready for whatever the gravel road throws at you.
Bigger in-frame storage
More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so youre always ready for whatever the gravel road throws at you.
Mounts galore
The new Checkpoint SL is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.
| Frame |
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
| Fork |
Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheel Front |
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle |
| Wheel Rear |
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142×12 thru axle |
| Tire |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Tire Part |
Bontrager TLR sealant, 6oz |
| Rim Strip |
Bontrager TLR |
| Skewer Front |
Bontrager Switch chamfered thru axle |
| Skewer Rear |
Bontrager Switch chamfered thru axle, removable lever |
| Shifter |
SRAM Rival AXS, 13 speed |
| Rear Derailleur |
SRAM Rival XPLR AXS, 46T max cog |
| Crank |
SRAM Rival XPLR, 40T, DUB Wide, 172.5mm length |
| Bottom Bracket |
SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette |
Sram Rival XPLR XG-1351, 10-46, 13 speed |
| Chain |
SRAM Rival E1, 12/13 speed |
| Brake Rotor |
SRAM Paceline, rounded, centerlock, 160mm |
| Saddle |
Verse Short Comp, steel rails, 145mm width |
| Seatpost |
Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Handlebar |
Bontrager Elite Gravel, alloy, 42cm width |
| Stem |
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Battery |
SRAM AXS battery pack (with charger) |
Geometry Chart
| B B Drop |
7.6 |
| Chainstay Length |
43 |
| Eff Seat Tube Angle |
72.8 |
| Eff Top Tube |
57.8 |
| Frame Reach |
39.7 |
| Frame Size Letter |
ML |
| Frame Stack |
60.1 |
| Head Angle |
72.0 |
| Head Tube Length |
15.1 |
| Offset |
4.9 |
| Seat Tube |
53 |
| Seat Tube Angle |
73.3 |
| Standover |
81.3 |
| Trail |
6.4 |
| Wheelbase |
104.2 |
| Wheel Size |
700c |
